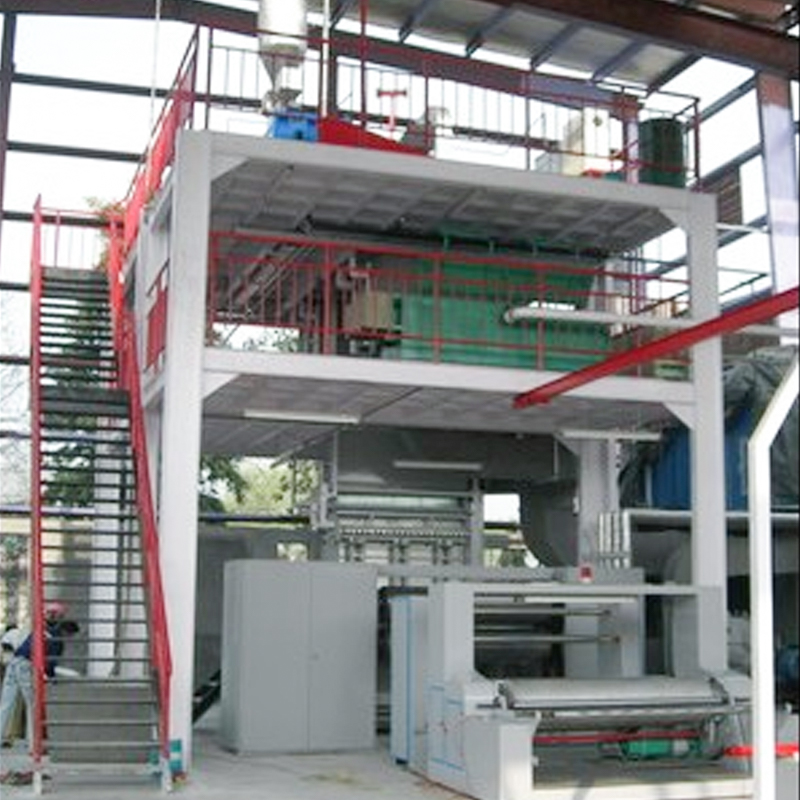

2.4m PP Spunbond Non texta Fabrica Fabrica

PP deductum Bund machinarum fabricarum non contextarum (2.4 metra) comprehendere debet omnes partes & res prout infra recensetur.

1. Screw extruder 150  1 set
(I) Longitudo dia recipis I: XXX"
(2) Maximum celeritatis gyrationis: 75r/Min
(3) Power: 110kw
(4) Frequency conversion praesidis
(V) extruder Redivivus: par # XC cochleis in ore redivivus vastum, AC 15kw motor

2. Duplex tub colum continuum colum unitas 1 set
(1) Area: 2.5m2 2;
(2) Maximum pressionem: 12MPa
(III) Quod licet pressura statera cum liquescens: 6MPa
(4.) Pressura iaccam permissa: 0.25MPa
(5) Maximus temperatus: 310℃
(6) Translatio caloris medium et stilum calefactivum: 350 °C vel supra, oleum calidum conduction, calefactio cyclica
(7) Filtering pretiosus: 300um
(8.) Materia liquescentis transeuntis department est 1Cr18Ni9Ti; Materia pro arca calefaciendi 16MnR est.

3. Metering Pump 1pc Model No. YRA 1×250 (partus facultatem 250 singulis)
(I) de Pressura exitus: MPa XL
(2) Rotate celeritatem: 5-30r/min
(3) Maximum pressionis statera: 35MPa
(4) Opus temperatum: ≤330℃
(5) Temperatura ad purgandum: ≤450℃
(6) Motor: 5.5kw, AC motor.
(7) Fuji  frequency gubernatoris est

4. Spinneret 1pc (par spinneret tabula duorum par)
(I) Caloris conduction oleum cyclicum calefactio
(2) Maximum temperatum: 300℃

5. Ratio refrigerandi et trahendi duo pede
(I) Aluminium
(2) lamella perforata, mensa curva, 60um reticulum immaculatum, multi- pressum liquescens

6. Deductio 1pc (specification: 2850×200065)

7. Diffusio 1pc

8. Apparatus lapping 1pc
(1) Alternus vena & motor gubernans, potentia 7.5 kW
(2) Frequentia conversio praesidis
(3) Maximum celeritatem: 120m/min

9. Thermo-coniunctae machinae 1pc
(1) Roller: stiletto circa, conductio caloris, olei cyclici calefactionis
(II) Oleum lubricat refrigerationem afferentem
(III) exacta temperatus imperium ± 1℃
(4) Maximum celeritatem: 120m/min
(5) Alternis monetae & gubernationis motoris, potentia 30 kW
(VI) Frequentia conversionem praetoris

10. revolvens machina 1pc
(1) Potentia: 11kw (Alterans vena & gubernans motricium)
(2) Maximum celeritatem: 120m/min
(3) Frequency conversionem praetoris

11. apparatus Slitting 1 pc
(1) AC motor, 5.5kw.
(2) Maximum celeritatem: 150m/min
(III) Latitudo in slitting: libere regitur
(4) Frequency conversion praesidis

12. Portitorem caeli Conditioner 1pc

13. Caminus calidus 4pcs(36kw 2pc, 48kw 1pc, 12kw 1pc)
(I) Design pressura: 10Kpa
(2) Pressura Operationis: 3Kpa
(3) Design temperies: 300℃
(4) Temperatura subtilitas: ±1℃
(5) Potestas: 3kw pro 36kw et 48kw caminus calidus, et 1.5kw pro 12kw calidus caminus
(6) Designata dimissio: 12.5m3/h

14. CERAULA duo PCs fan (30kw)
(1) Design missionem: 14013 m3/h
(2) Design pression: 4736pa
(3) Rotate celeritatis: 1450r/min
(4) Power: 30kw
(5) Frequentia conversio praesidis
15. Flare ventilabrum pro fumo  1 pc
(1) Design missionem: 1410-1704 m3/h
(2) Design pression: 3507-3253 pa
(3) Rotate celeritatem: 2900r/min
(4) Power: 4kw
(5) Frequentia conversio praesidis

16. Systema moderantum electricum 1 statuto (compresso a switch vel tactu velamento, usque ad electionem emptoris)
17. Aeris compressor I set
18. materia copia tank 1 set 300KG
19. Fader  1 pone 10HP

20. Ultrasonic lautus, ultrasonic unda mundior 150000 1 set
(I) Dozer ad dominum batch 200W 2sets
(2) Frequentia conversio praesidis

21. Fornaces electricas ad purgandum  1set
22. Steel frame 10*10*6.5M 1set
23. Conveyor cingulum 4.15*10M 1piece
24. Hostia Electrica / levare 1 ton/ pone  2sets
25. Limbis unam sectam
